This case study presents a transient thermal fluid simulation of a finned tube heat exchanger using a distributed Flownex model. It simulates temperature and pressure transients, showing thermal inertia effects and outlet temperature responses. Results align with XNet code comparisons, demonstrating the model's ability to predict heat exchanger performance during transient events.
CHALLENGE
The objective of the simulation is to simulate the response of a finned tube heat exchanger due to a specified temperature and pressure transient.
BENEFITS
This case study demonstrates the transient thermal fluid simulation of a finned tube heat exchanger. The finned tube heat exchanger model can also be used in cycle analysis where it is used in conjunction with other models (See “Start-up of two-shaft High-Temperature Gas-Cooled Nuclear Power plant” case study).
SOLUTION
The thermal fluid transient simulation of a finned tube heat exchanger was discussed. The thermal inertia of the finned tube heat exchanger was visible in the temperature results. Depending on the design criteria, different variables can be monitored during the transient event, e.g. velocities, pressure difference between the fin and tube sides. From the temperature graph it can also be determined whether the heat exchanger would provide the design point outlet temperature for the specified transient event.
INTRODUCTION
This case study demonstrates the transient thermal fluid simulation of a finned tube heat exchanger. The finned tube heat exchanger model can also be used in cycle analysis where it is used in conjunction with other models (See “Start-up of two-shaft High-Temperature Gas-Cooled Nuclear Power plant” case study).
SYSTEM DESCRIPTION

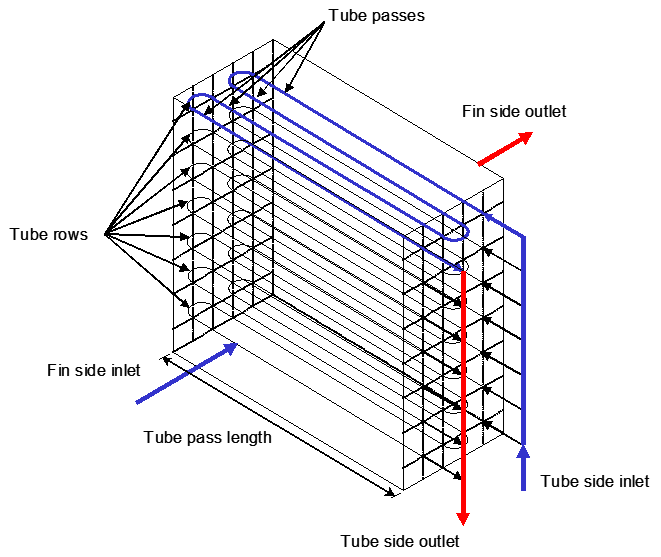

The thermal hydraulic conditions of a typical finned tube heat exchanger are simulated. Figure 1 shows a schematic of a typical finned tube heat exchanger.
OBJECTIVE OF SIMULATION
The objective of the simulation is to simulate the response of a finned tube heat exchanger due to a specified temperature and pressure transient.
FLOWNEX MODEL

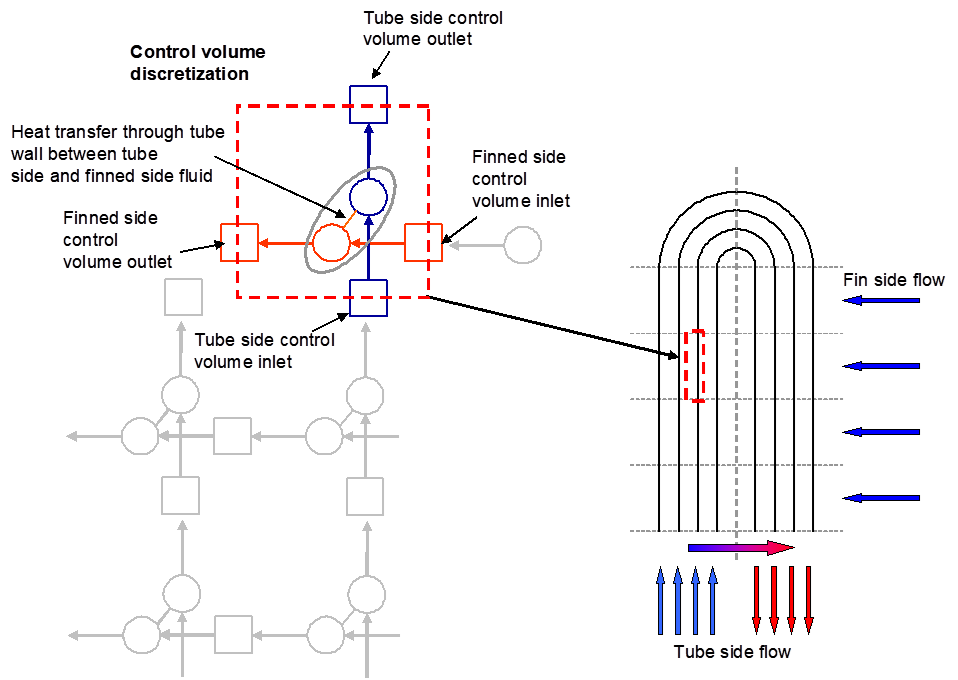

The Flownex finned tube heat exchanger model is a distributed model that is build up from an integrated network of one-dimensional elements. These elements represent either the flow paths on the finned or tube sides or they model the heat transfer from the fluid on the tube side, through the tube wall and fins to the fluid on the finned side. In Figure 2 it is shown that each intersection between the finned side fluid path and the tube side fluid path is considered as a control volume and the typical element network of a single control volume is shown. The thermal inertia of the solid tube wall and fin material and the fluid volume are taken into account in the modeling of transient simulations.
DESCRIPTION OF SIMULATION
In this case a finned tube heat exchanger with two parallel circuits, ten rows high and five passes are simulated. Both sides use air as working fluid. The inlet temperature and pressure of the air on the finned side is 150 °C and 350 kPa respectively. The inlet temperature and pressure of the air on the tube side is 30 °C and 350 kPa respectively. The finned side has a pressure drop of 1 kPa and the tube side has a pressure drop of 2 kPa. During the transient event the following events were specified:
At 1 second the finned side inlet temperature is changed from 150 °C to 300 °C.
At 10 seconds the finned side inlet pressure is changed from 350 kPa to 500 kPa.
At 20 seconds the tube inlet pressure is changed from 350 kPa to 500 kPa.
At 25 seconds the finned side inlet pressure and temperature are changed from 500 kPa and 300 °C to 350 kPa and 200 °C respectively. At the same time the tube side inlet pressure and temperature are changed from 500 kPa and 30 °C to 350 kPa and 25 °C respectively.
During the transient the outlet pressures are kept constant.
RESULTS
The Flownex results are compared to a distributed model in XNet[1]. The comparison between the temperature results is shown in Figure 3. It can be seen that at 1 second when the finned side temperature increases to 300 °C, both the finned side outlet and tube side outlet temperatures increase gradually. At 10 seconds when the finned side inlet pressure is increased, the outlet temperature of both the finned side and tube side increases almost as quickly as the specified transient event. This is due to the sudden increase in mass flow on the finned side. At 20 seconds the tube side pressure is also increased and this causes the finned side outlet and tube side outlet temperature to decrease suddenly. This is due to the sudden increase of mass flow on the tube side that is able to remove more heat received from the finned side. At 25 seconds both sides experience a pressure and temperature transient. The quick response of the outlet temperatures is again due to the sudden change in mass flows. Thereafter the gradual decrease of the outlet temperatures is due to the change in inlet temperatures. In both cases where the inlet temperatures were changed the outlet temperature on both sides only changed gradually due to the thermal capacitance of the tube wall solid material. It can be seen that the thermal inertia of the solid material is much larger than the thermal inertia due to the fluid volume by comparing the transient temperature response of the outlet temperatures when a step input was specified at the inlet.

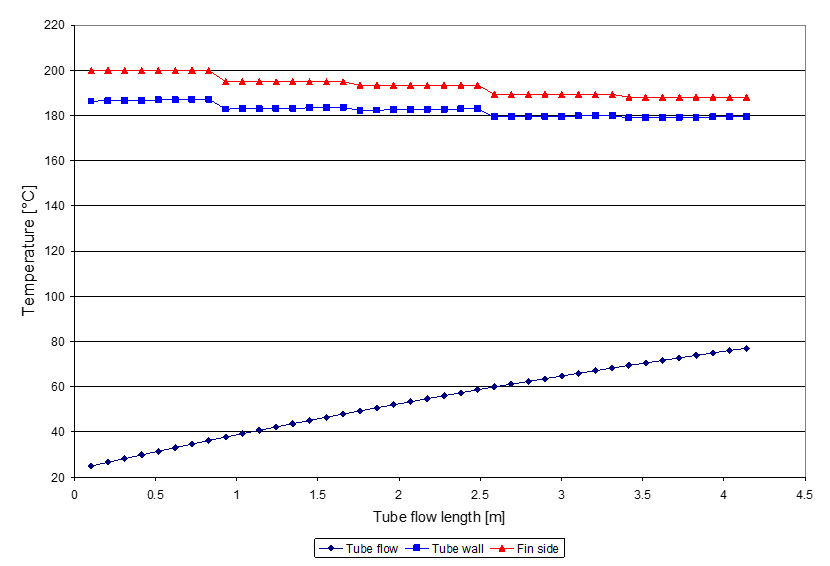

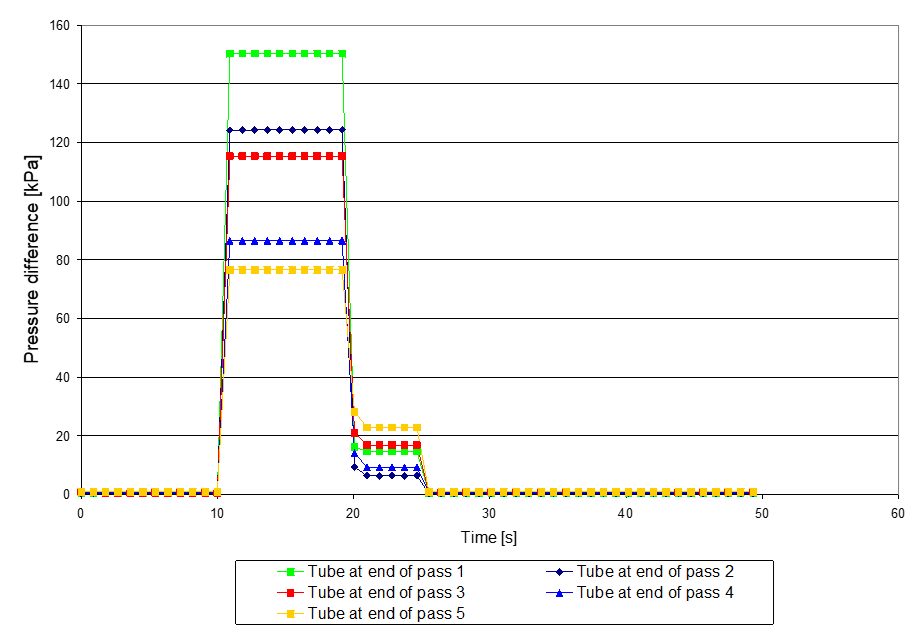

The pressure difference across the tube wall, at the bends at the end of each pass through the heat exchanger, during the transient event is shown in Figure 4. The largest pressure difference across the tube wall is between 10 and 20 seconds and has a value of 150 kPa. The fluid temperature distribution on the fin and tube sides of the heat exchanger and the tube wall temperature for the last time step of the transient is shown in Figure 5. It can be seen that the tube wall temperature and the finned side air temperature stays constant for each tube pass through the heat exchanger. The tube side temperature however, increases gradually along the tube length.
CONCLUSION
The thermal fluid transient simulation of a finned tube heat exchanger was discussed. The thermal inertia of the finned tube heat exchanger was visible in the temperature results. Depending on the design criteria, different variables can be monitored during the transient event, e.g. velocities, pressure difference between the fin and tube sides. From the temperature graph it can also be determined whether the heat exchanger would provide the design point outlet temperature for the specified transient event.
REFERENCE
[1] XNet is a general thermal-fluid network code, which solves the mass, momentum and energy transfer equations in complex networks. XNet uses an explicit fourth order Runge-Kutta time integration scheme.
