Question
How can the Flownex window layout be restored to its default configuration? What should be done if some windows do not return to their default positions after resetting the layout?
Answer

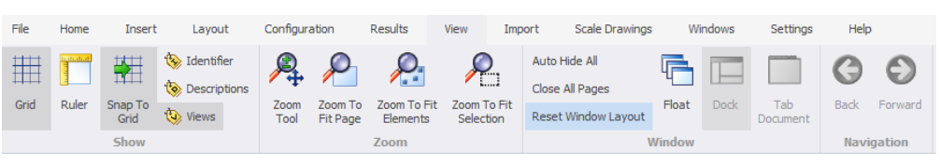

Flownex provides a built-in option to restore the default window arrangement. To reset the window layout, click the Reset Window Layout button located on the View ribbon. This will restore the standard layout for the project windows and interface elements.

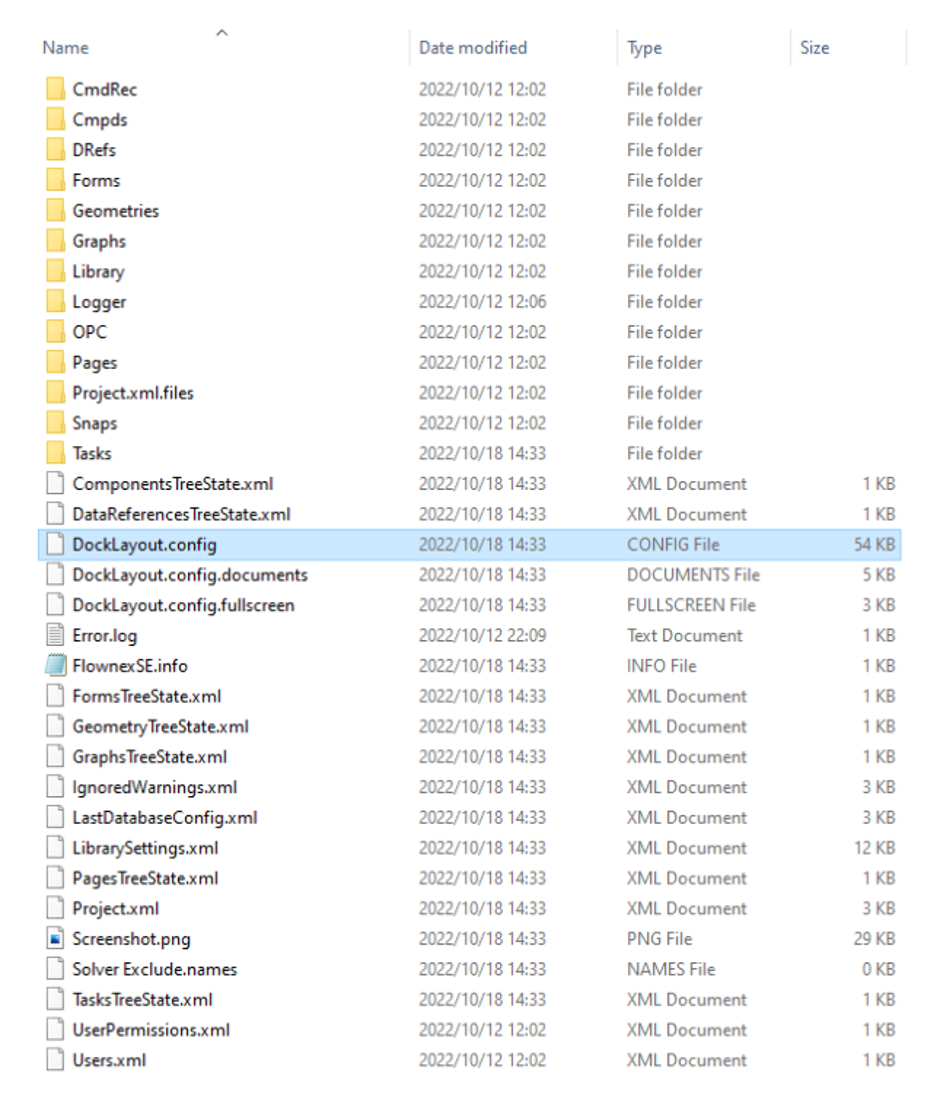

If some windows are still not reset correctly after using this option, the layout configuration file can be removed manually. Close Flownex and delete the DockLayout.config file located within the project folder. When the project is opened again, Flownex will recreate the layout using the default window configuration.
